- 3 Years Warranty
- Better Than Lithium Ion Battery
- 6 ~ 7 Years Life /2500 life cycles
- Small In size and High in Power
Electric Scooter Bike Battery. Best for Both HUB Motor, DC gear Motor. Its lithium Iron Phosphet LifePo4 battery with Charge protection with BMS. Its High power, high Back Up facility with Longer Life Battery. You can use this battery in your 72v 500 watts motor, 1000 watts, and up to 3.5 Kwatts motor easily. This battery is protected with BMS connection. Means battery is with over charge protection. Low discharge protection. This battery weight is very low than your normal lead acid battery. And it can provide approriate Power to your Motor. This Battery provides a lifespan of max 7 Years.
Use only lithium Iron Phosphet battery charger for this battery. Do not use Lead acid Battery Charger.
Package Include -
1 x battery
1 x Battery Socket

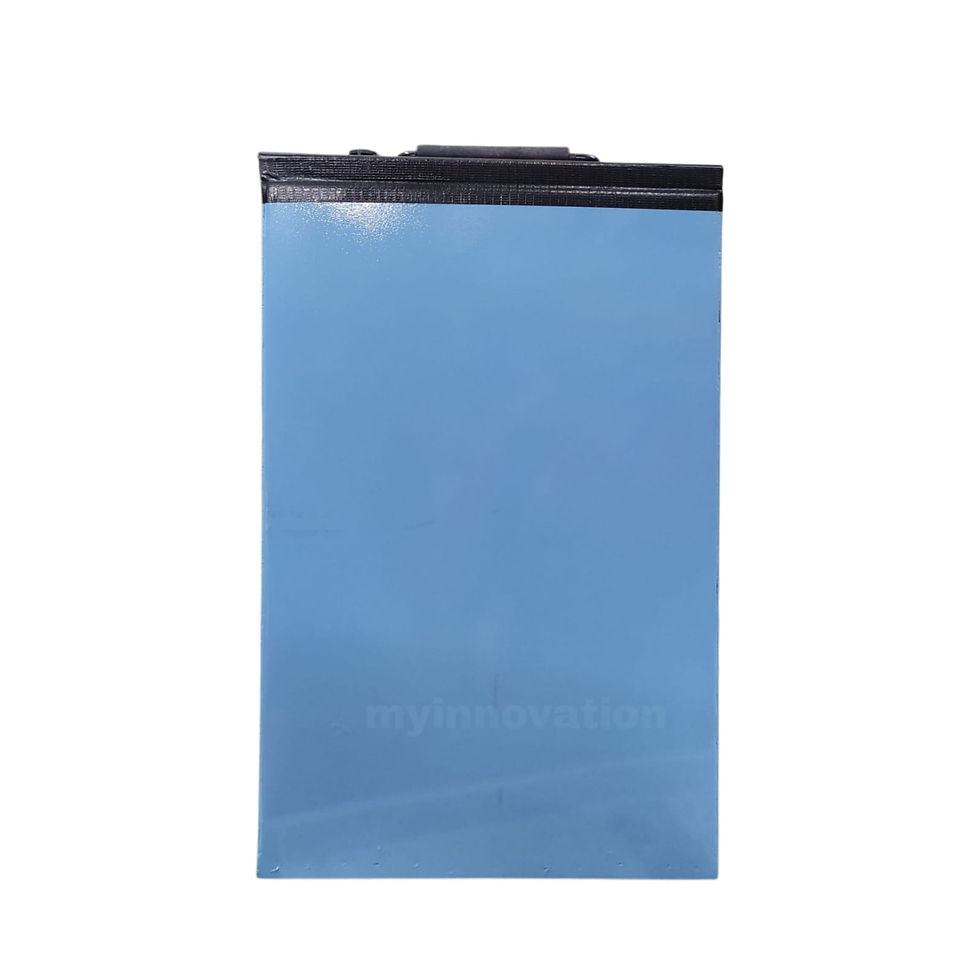

72volt 30AH Lithium Phosphate Electric Bike Scooter LifePO4 Battery Pack
Bulk Discount
Battery Dimension
Length x Width x Height = 16 x 24 x 32 cm
Battery SOC Meter -
Shows battery Capacity + Voltage + LED segmet bar for Battey Capacity.
Battery Wires -
Anderson Socket /SB50 for charge and discharge .
Exra 3pin computer socket for only charge.
4mm wire used.
Battery cells Details -
Cell - Cnane 3C EV Grade 32140cells 15,000mah
Total no of cell used – 23x2 pcs - 46cells
Charge Cycle with full Capacity - 2500 aprox
BMS Specification - 23s50A Branded, with Heat Sink protection
Thermal sensor Protection - YES
Maximum Battery Capacity - 30AH or 30,000 mah
Maximum Power Motor you can attach – 2800watts
Maximum discharge current - 40A
Maximum charging current - 20A
Battery standard voltage - 72v
Battery full charge voltage – 77v
Battery Low discharge voltage- 66v
Back up of Battery –
This battery can give a mileage of 80 to 90km. Though it depends on electric scooter condition and other parameters. We do test it with a 1000watts motor 55kg person running.
Reviews
I am very happy 100% good quality product
With 6amp 72 volt charger it becomes full in 4 hours, getting 70km range which is expected in my okinawa praise pro scooter. Battery width was 1cm more than old battery, so altered scooter cabin size and now fits perfect
